- Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
- Dual-Sided Wire Entry: Form secure connections between 6 conductors quickly using the double-side entry ports sized for wires between 250 MCM and 6 AWG
- Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
- Pre-filled Oxide Inhibitor: All 6 dual-sided (DSE) entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to protect against corrosion, debris or moisture
- Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects

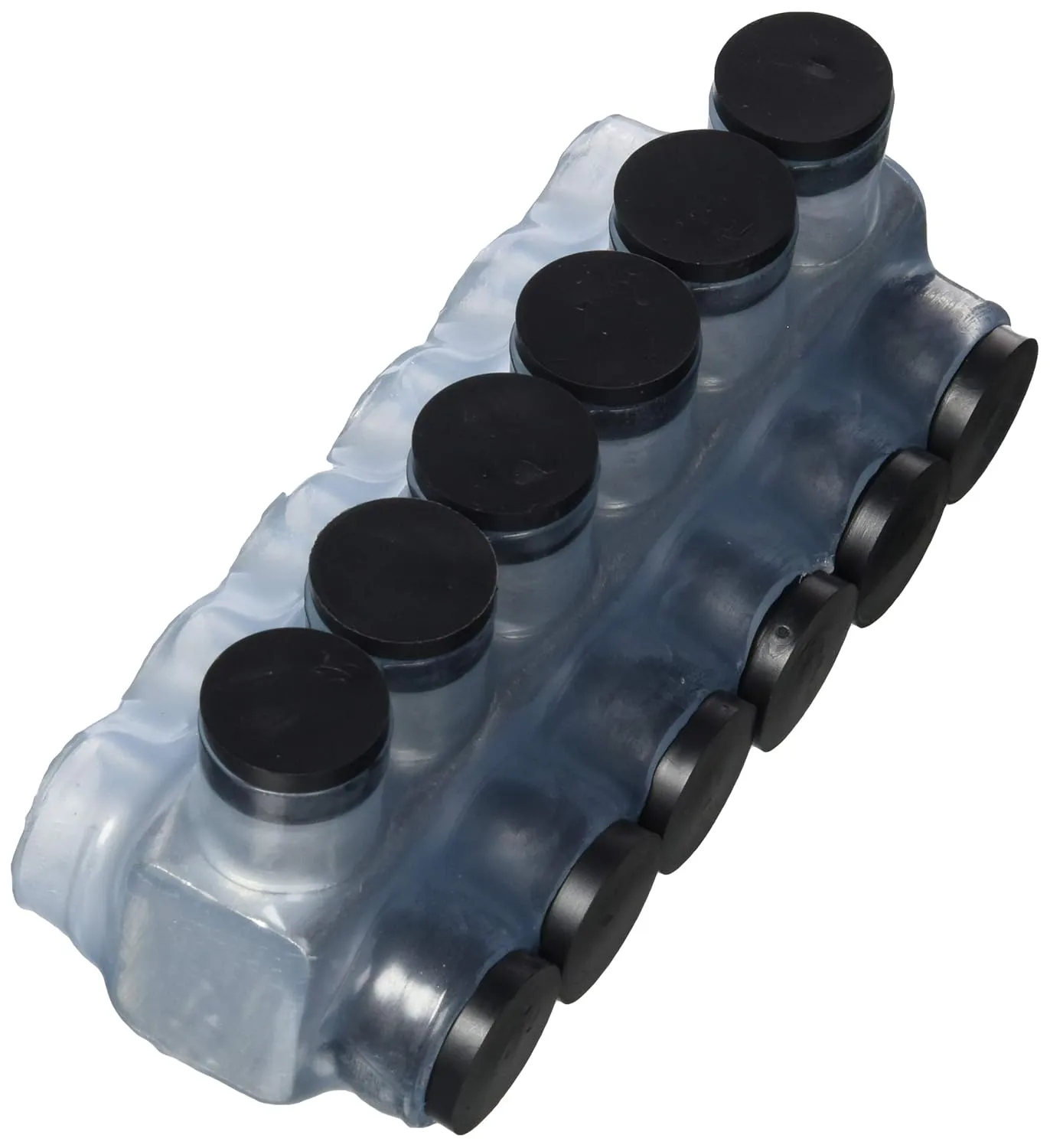

The Polaris IPLD250-6CB 6-Port Dual-Sided Connector provides the simplest solution for forming a secure connection between up to six conductors in applications including cable trays, panel boards, ducts, raceways or troughs. Sized for 250 MCM - 6 AWG wires and rated for 600V, this pre-insulated connector comes pre-loaded with an oxide inhibitor and installs faster than traditional uninsulated connector options using just a hex key and torque wrench. The clear body lets installers see their work for optimal conductor placement and is ergonomically molded to offer a comfortable grip, in addition to being resistant to abrasion, chemicals and UV rays. All-in-one design saves time and supplies on each job by eliminating the need for cover and taping; simply brush the conductors clean, strip back their insulation, insert one conductor into each port and secure the covered pressure screws. The IPLD250-6CB connector is rated for a 90 degrees Celsius operating temperature and dual rated for use with copper and/or aluminum cables, up to max AMP ratings of 790 and 615 respectively. These connectors are even UL-listed for parallel configurations, allowing you to tackle larger jobs safely. Polaris: the original pre-insulated connector and still the brand most asked for by name.
- Product Dimensions : 5.52 x 2.28 x 2.18 inches; 1.8 Pounds
- Date First Available : April 15, 2020
- Manufacturer : NSi Industries
