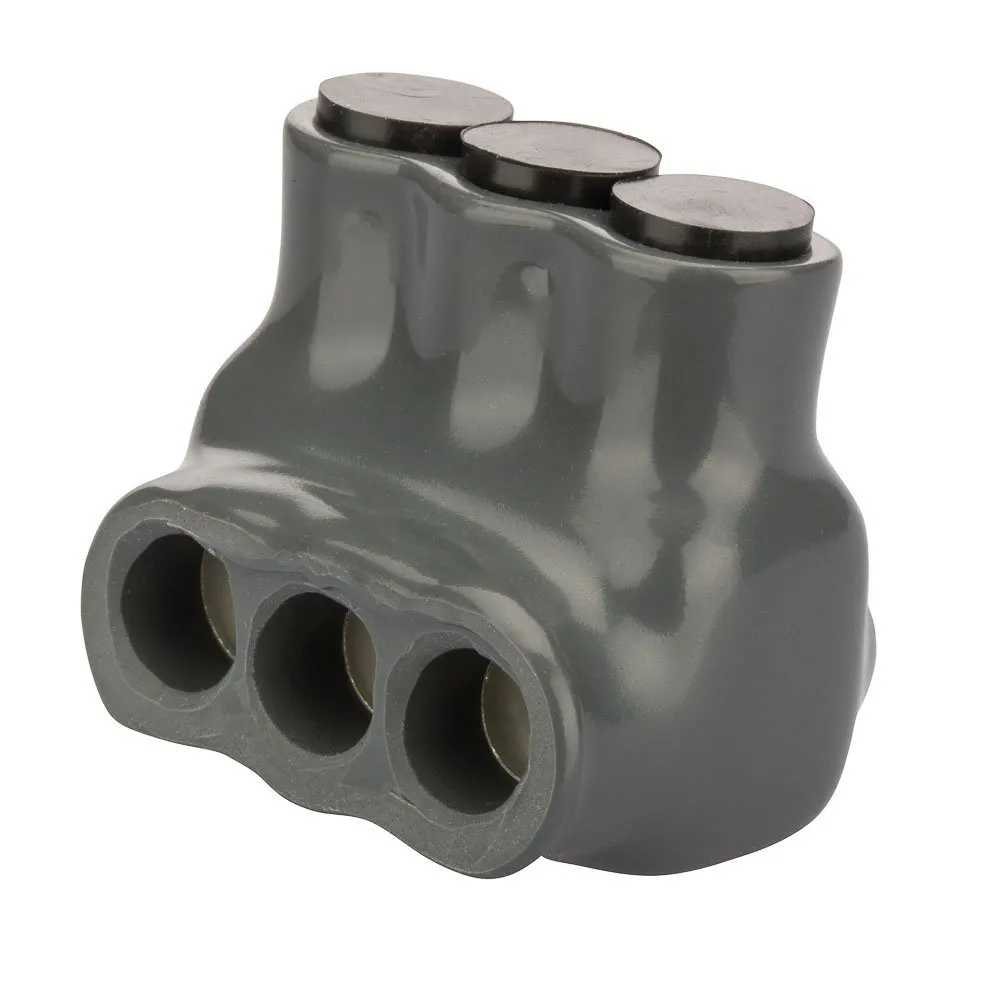

This NSi Industries IPLG6-3 Polaris Grey insulated connector block connects up to three fine-stranded flexible and extra-flexible copper conductors, and is suitable for use in cable trays, troughs, wire ways, raceways, ducts, motor junction boxes, and other applications. It accommodates Class B, C, D, K, M, and I copper wires from American Wire Gauge (AWG) #6 to #14. It is insulated with plastisol for high-dielectric strength and resistance to chemicals, abrasion, and UV radiation. The connector comes with removable access plugs that cover unused entry ports and 1/8" hex screws, which hold the wires in place in the block. Wire entry ports are located on one side of the connector only. The connector is rated for 600V and has a temperature range of -45 to 90 degrees C. It measures 1.54 x 1.50 x 1.12 inches (L x H x W), and is Underwriters Laboratories (UL) and Underwriters Laboratories of Canada (cUL) Listed. (L is length, the horizontal distance from left to right; H is height, the vertical distance from bottom to top; W is width, the horizontal distance from front to back.) This insulated connector block is suitable for use in diesel locomotive (DLO) applications, with motor lead wire, and other electrical applications with appropriately sized conductors.

NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 1.55 x 1.24 x 1.37 inches; 1.15 Pounds
• Date First Available ‏ : ‎ May 16, 2013
• Manufacturer ‏ : ‎ NSi Industries
• Country of Origin ‏ : ‎ USA
